How It Works
Code-Based Smart Storage Locker
Unlock with a code · Simple operation
Set a 4–10-digit code of your choice on the touchscreen for simple, fast operation. Ideal for factories, schools, and retail stores, with no network required. Built-in self-diagnostics and exception alerts ensure reliable, secure operation.
Set a 4–10-digit code of your choice; simple to use
Few steps required—one person can store or retrieve in 30 seconds
Scan logs uploaded to the cloud; review data remotely with no on-site management
Automatic fault detection with exception alerts to extend service life

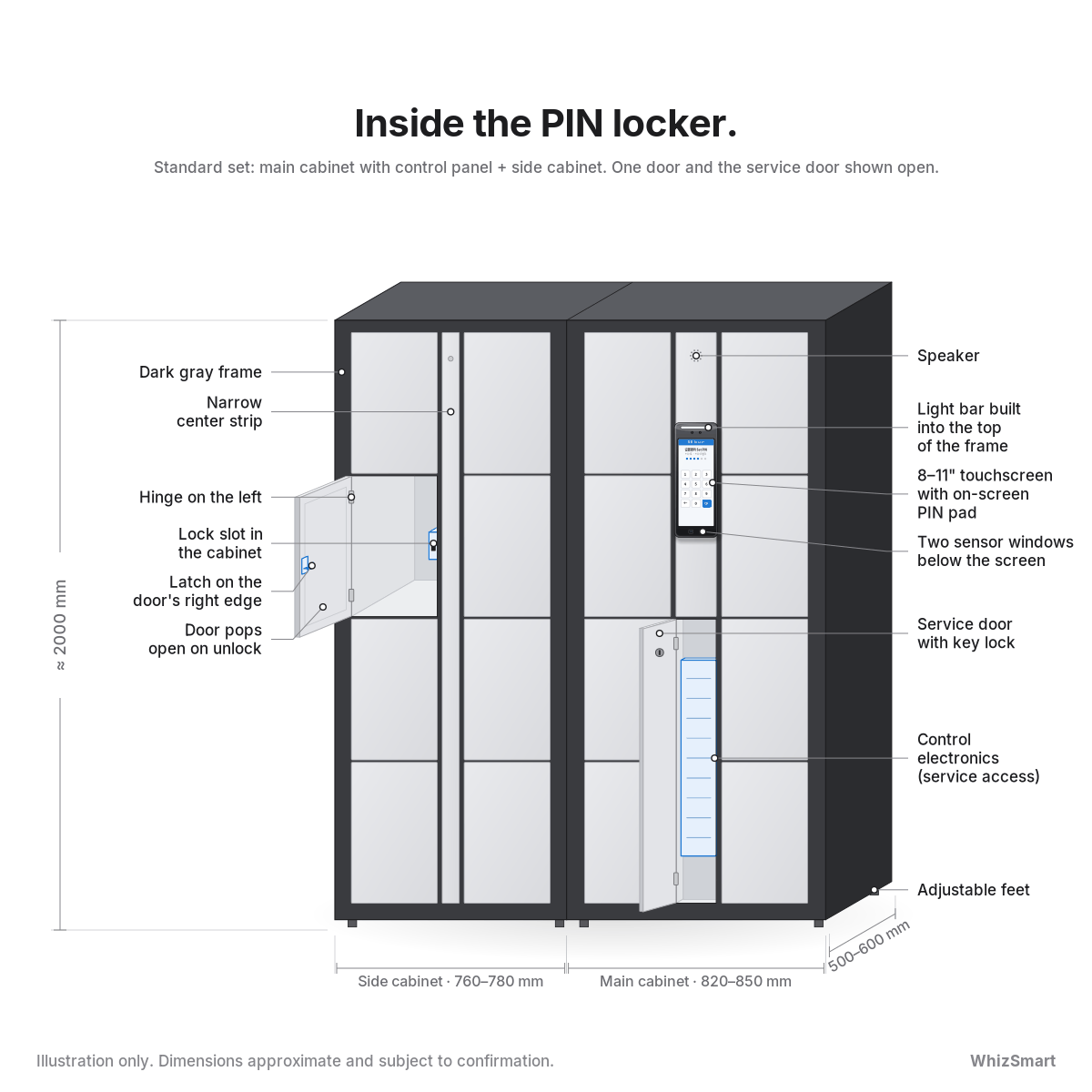

8–11" Android touchscreen with an on-screen PIN pad and simple step-by-step guidance
Quick guide: if your site has strict fire-safety rules, choose a metal cabinet; for damp areas or sites with lower fire requirements, choose ABS plastic.
Light, rust-free and water-friendly
Strong, fire-resistant, great value
Premium, fire- and corrosion-resistant
| Model | Door (H × W × D, mm) | Columns × Rows | Doors | Set (W × H × D, mm) |
|---|---|---|---|---|
| WS-ABS-382-18D | 310 × 382 × 500 | 3 × 6 | 18 | 1146 × 1950 × 500 |
| WS-ABS-382-12D | 465 × 382 × 500 | 3 × 4 | 12 | 1146 × 1950 × 500 |
| WS-ABS-382-9D | 620 × 382 × 500 | 3 × 3 | 9 | 1146 × 1950 × 500 |
| WS-ABS-382-6D | 930 × 382 × 500 | 3 × 2 | 6 (full-length) | 1146 × 1950 × 500 |
| WS-ABS-323-6D | 453 × 323 × 450 | 3 × 2 | 6 | 969 × 951 × 450 |
Door heights exclude the base (80 mm; 45 mm for the 323 series) and the 10 mm top panel.
Tell us your scenario and requirements, and we will deliver a custom solution
