Name: WhizSmart QR Code Payment Smart Locker
Brand: WhizSmart
SKU: WS-QRPAY-001
Availability: InStock

Core Features

Scan-to-Pay Makes Storage Easier

QR Pay Smart Locker

Users scan a code with their phone to choose a locker and complete payment—fully self-service, with no staff needed. Google Pay, Apple Pay, Credit Card, and Membership Card are supported, so users worldwide can pay in their preferred way.

Scan with a phone to open—no app download required
Supports Google Pay, Apple Pay, Credit Card, and Membership Card
Phone out of battery? Enter your phone number + code to retrieve items
Flexible pricing settings with automatic time-based billing, with revenue going straight to the venue's own account

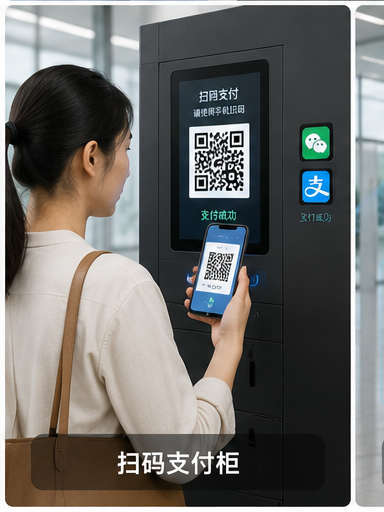

Scan to Open

Scan a code with your phone to choose a locker; the door opens automatically after payment

Global Payment Methods

Supports Google Pay, Apple Pay, Credit Card, and Membership Card for global users

Phone Number Retrieval

If your phone is out of battery, enter your phone number + code to retrieve items

Automatic Time-Based Billing

Flexible pricing settings with automatic revenue reporting

How It Works

Simple and Fast

1. Scan

Scan with your phone to choose a locker

2. Pay

Choose Google Pay / Apple Pay / Credit Card / Membership Card

3. Open

Door opens automatically after payment

4. Retrieve

Open with a code or phone number + code

QR Code Scanner

Industrial-grade scanner supports Google Pay, Apple Pay, Credit Card, and Membership Card—ready for global markets.

0.2s instant scan
Multi-payment platform support
Auto receipt printing

Cabinet Material

Cabinet Material Options

Quick guide: if your site has strict fire-safety rules, choose a metal cabinet; for damp areas or sites with lower fire requirements, choose ABS plastic.

ABS Plastic

Light, rust-free and water-friendly

Will not rust and stands up to moisture
Lightweight and easy to move or rearrange
Multiple colors available – contact us for color options
Screw-free snap-fit modules that assemble quickly
Newer models feature rounded, soft corners
Standard sizes listed below

Best for: swimming pools, water parks, bathrooms, beaches and other damp areas with low fire-safety requirements.

Mold-produced, fixed sizes – sizes cannot be customized

Metal – Galvanized

Strong, fire-resistant, great value

Non-combustible metal body for fire-sensitive sites
Sturdy construction for daily heavy use
Cost-effective for large projects
Detailed specifications available on request

Best for: schools, factories, offices and other venues with higher fire-safety requirements.

Custom sizes available

Metal – Stainless

Premium, fire- and corrosion-resistant

Non-combustible and highly resistant to corrosion
Hygienic surface that is easy to clean
Premium finish for upscale interiors
Detailed specifications available on request

Best for: hospitals, food-processing plants and high-end venues.

Custom sizes available

ABS Standard Sizes

Model	Door (H × W × D, mm)	Columns × Rows	Doors	Set (W × H × D, mm)
WS-ABS-382-18D	310 × 382 × 500	3 × 6	18	1146 × 1950 × 500
WS-ABS-382-12D	465 × 382 × 500	3 × 4	12	1146 × 1950 × 500
WS-ABS-382-9D	620 × 382 × 500	3 × 3	9	1146 × 1950 × 500
WS-ABS-382-6D	930 × 382 × 500	3 × 2	6 (full-length)	1146 × 1950 × 500
WS-ABS-323-6D	453 × 323 × 450	3 × 2	6	969 × 951 × 450

Door heights exclude the base (80 mm; 45 mm for the 323 series) and the 10 mm top panel.

Specifications

Technical Specifications

Unlock Method

QR Scan + Phone Number + Code

Payment Methods

Google Pay, Apple Pay, Credit Card, Membership Card

Screen Size

8–11-inch Android touchscreen

Number of Doors

8 / 12 / 16 / 24 Doors (Optional)

Touch Screen

8–11-inch Android capacitive touchscreen

LCD Screen

8–11-inch full-view IPS display, brightness 250-300 nits

Aspect Ratio

16:9

Resolution

1024 × 600

CPU

Android 9.0+; 8-core 64-bit 1.6GHz

RAM

2GB DDR

Storage

16GB eMMC

Optional (Quectel EG25)

WiFi

Supported

Ethernet

Supported

USB 2.0

2 ports

Serial Port

RS485 + RS232 + TTL reserved

Audio

3W / 8Ω dual channel

TF Card Slot

Supported

Input Voltage

AC 220V / 50Hz

Cabinet Material

ABS plastic (fixed sizes); galvanized or stainless metal (custom sizes)

Protection Rating

IP65 front panel waterproof

Operating Temperature

-20°C to 60°C (wide-temp design)

Use Cases

Malls & Supermarkets

Short-term storage for shoppers

Scenic Areas & Stations

Short-term luggage storage for travelers

Gyms

Temporary storage for members

Hospitals

Storage for patients' families and visitors
